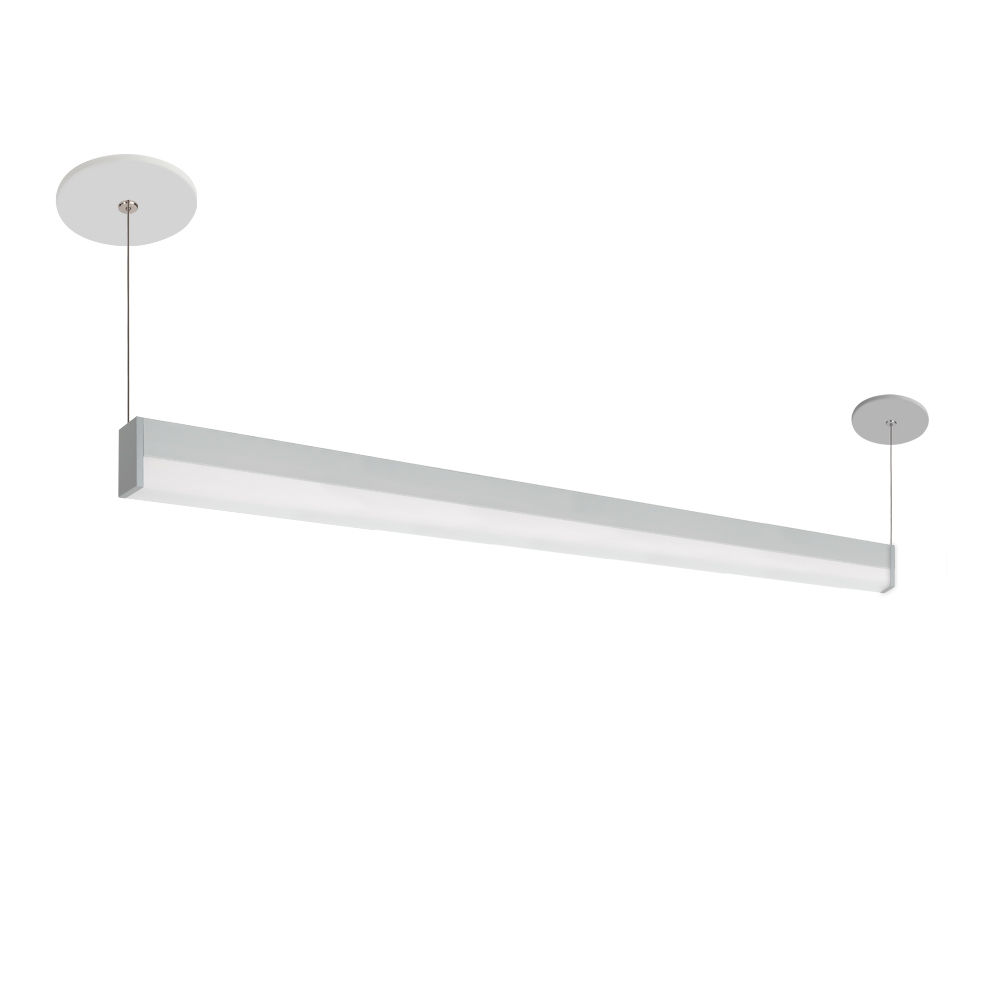

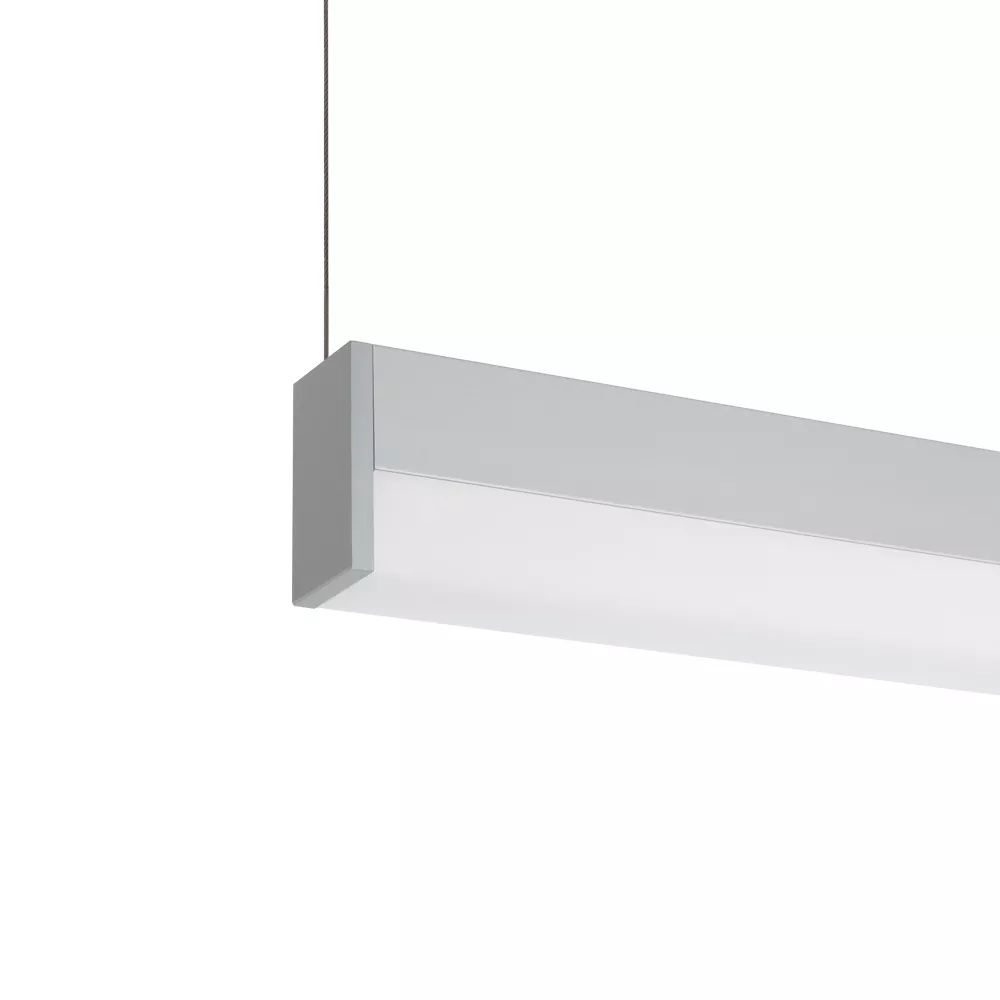

Precision-Edged Luminaire

NOLAN

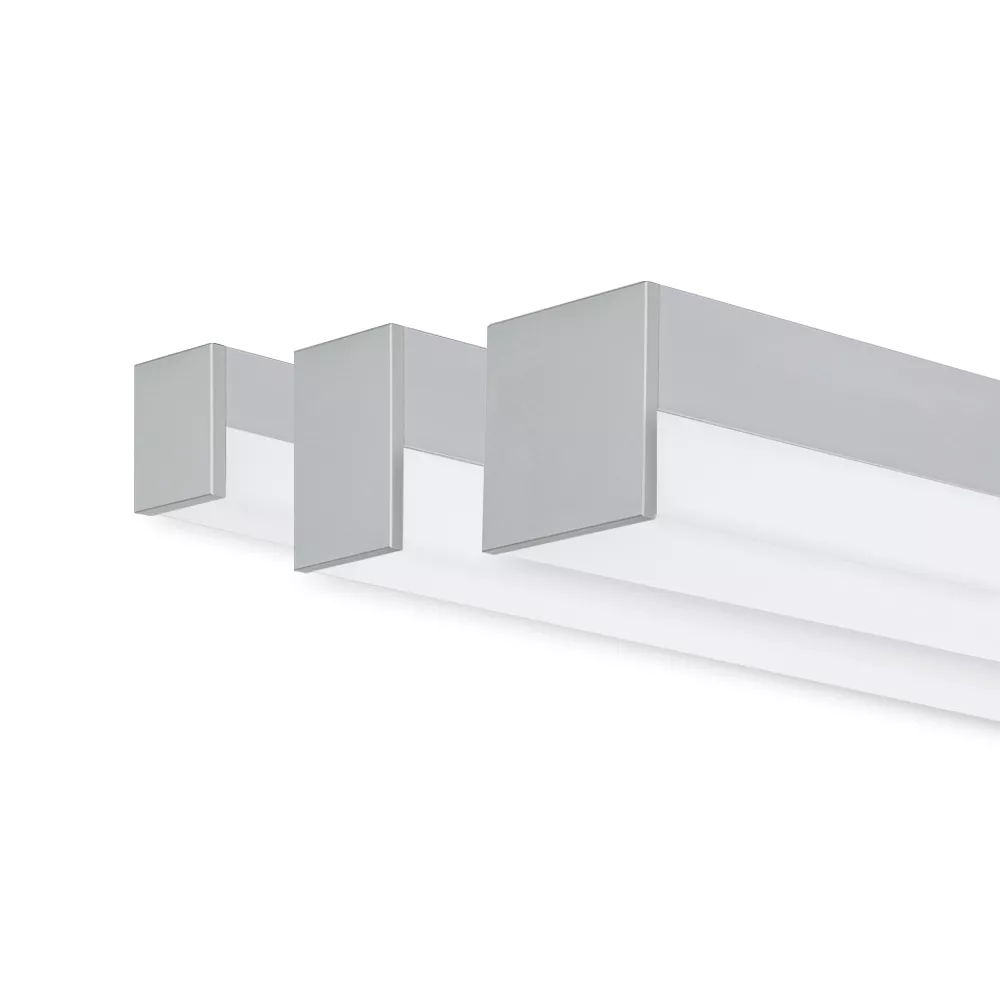

1.25",2.25", and 3.25" profile linear fixture with precision-edged extruded acrylic lens. Lens snaps-in for exact fit, and effortless removal installation and driver access.

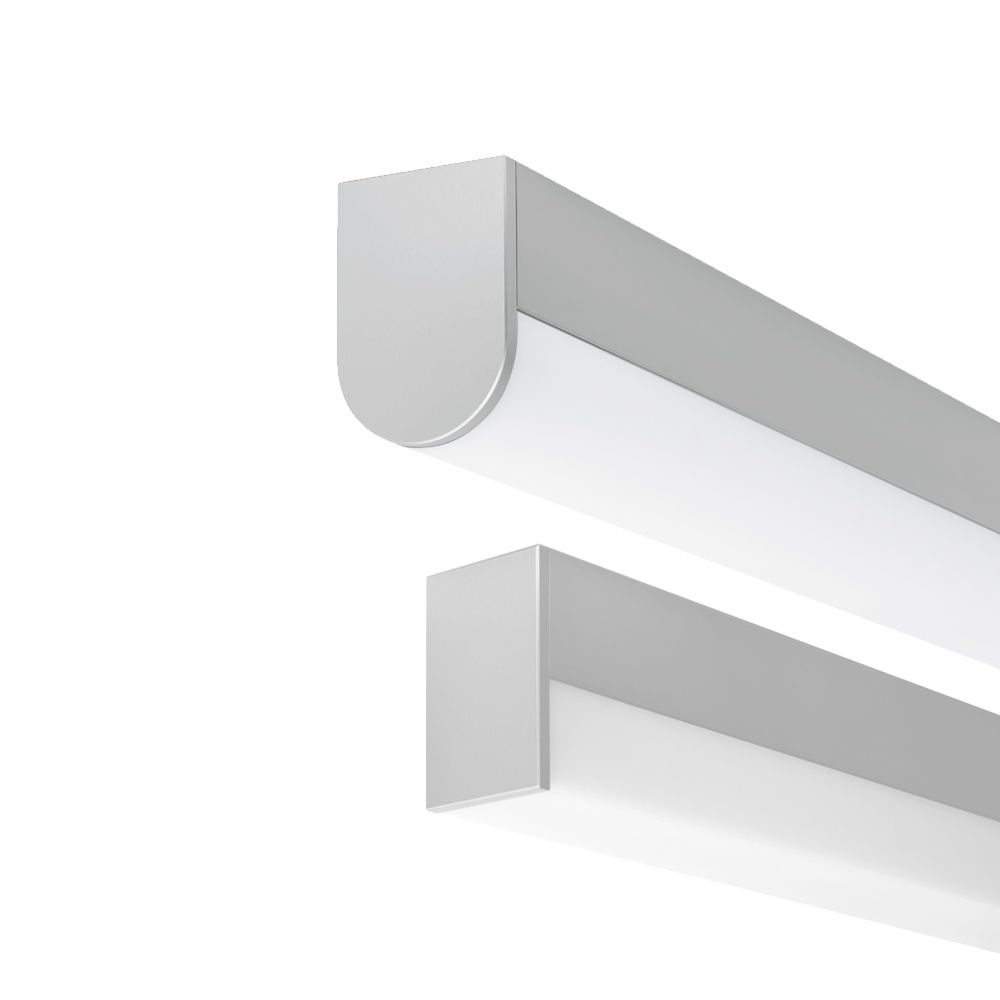

Available in 2', 3', 4', 6' and 8' nominal lengths. Teardrop lens option for 225(TDW), and continuous run available.

Applications

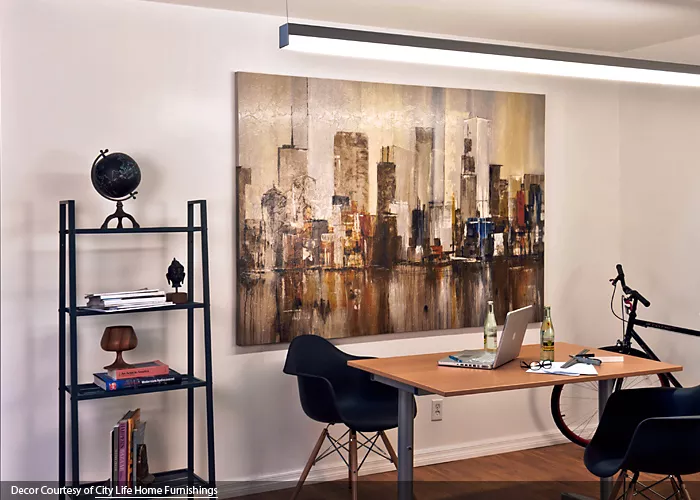

Office, residential, corridors and retail establishments.

Mounting Options

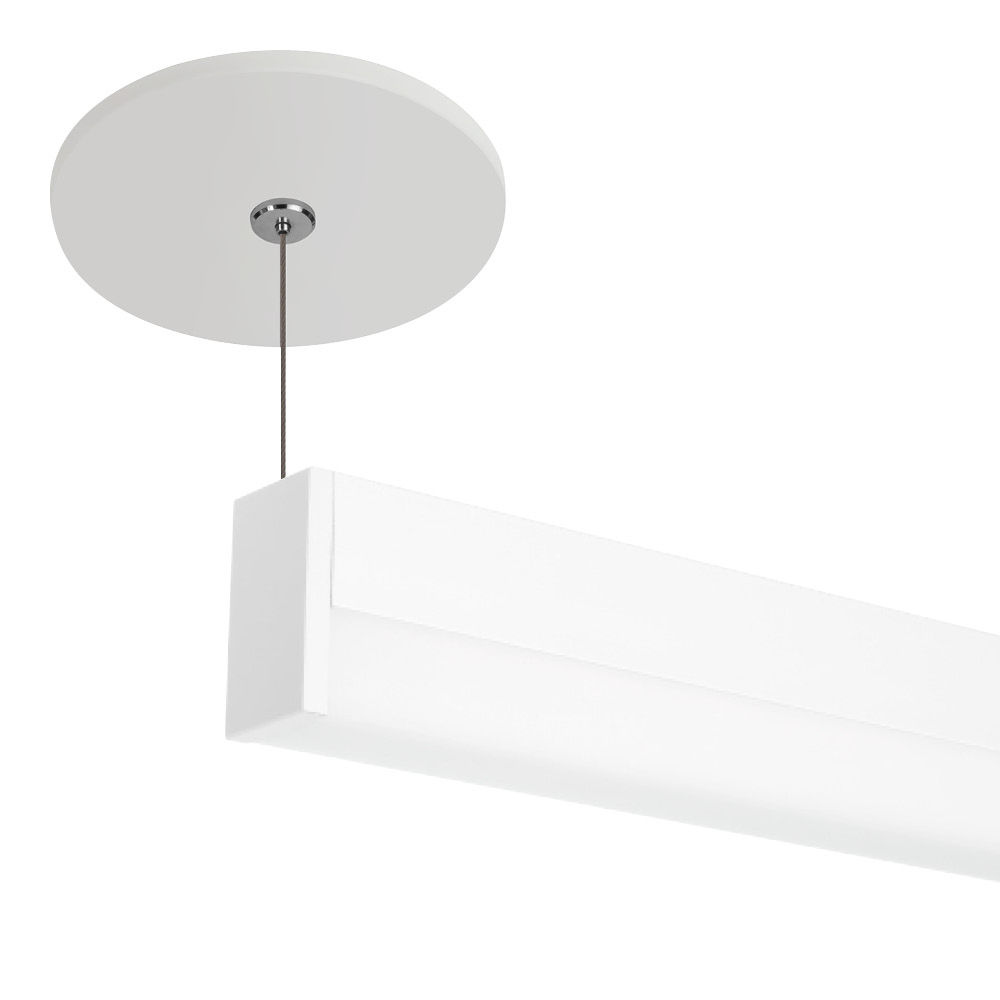

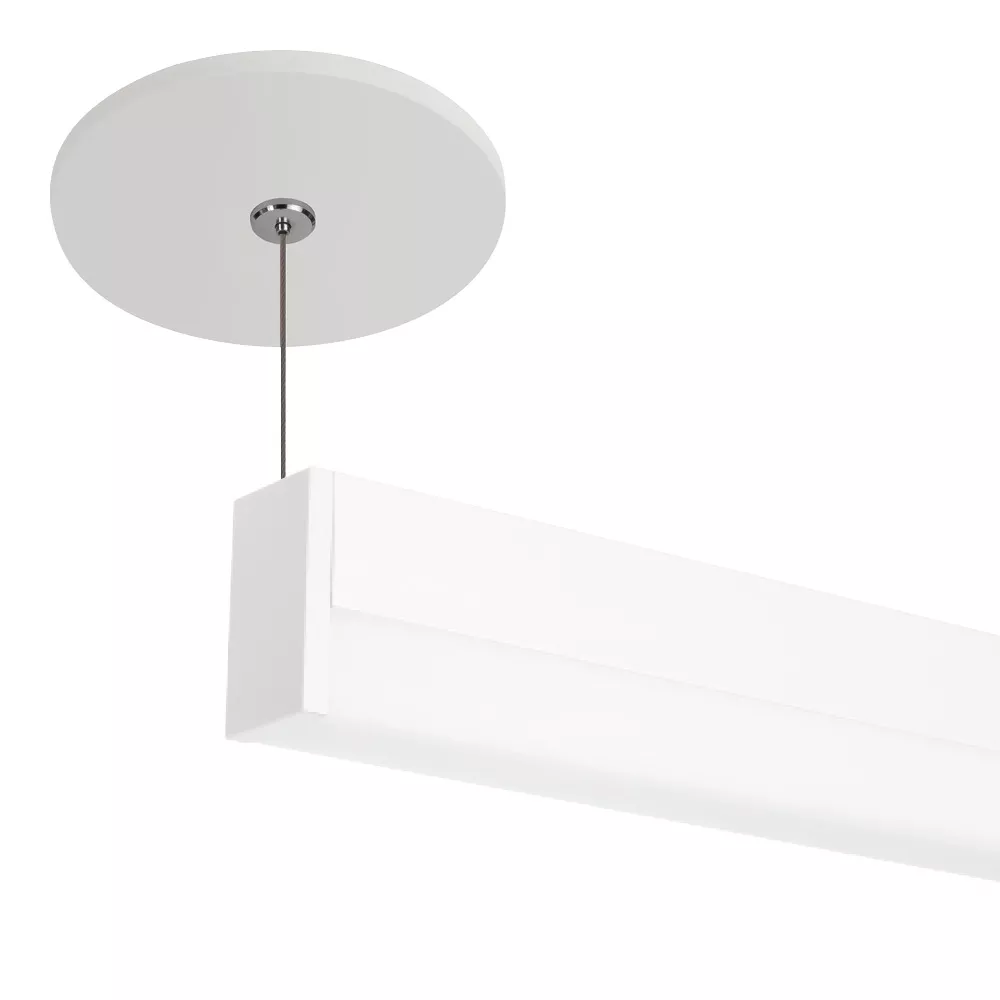

Surface Mount – SM, Suspended Pendant - CSS, Adjustable Suspended Pendant – CSS-R, & Powered Cable Suspension System – CSS-P

Light Source
LED

Other
Adjustable aircraft cable suspension mount, wall or ceiling surface mount, multiple acrylic lens selections.

Heavy gauge extruded anodized aluminum housing, 1/4" precision machined aluminum end caps, extruded acrylic lenses.

10-Day Shipping
Select standard offerings available for 10-day shipping. See 10-Day Specification.

Country of Origin: United States

Product Information

  • Product Features

    Aperture Size : 1-1/4" (1.25"),2-1/4" (2.25"),3-1/4" (3.25")

    Construction Type : Aluminum

    Environment : Indoor

    Light Source : LED

    Listings : Damp Location

    Lumen Output : Standard (SLO),High (HLO),Custom (CLO)

    Mounting : Cable Suspended,Power Over Cable,Rigid Stem,Wall Mount,Ceiling Mount

    Product Shape : Rectangle,Square

    Product Type : Direct,Suspended Linear,Surface Linear

    Voltage : 120V-277V,347V,Low Voltage
