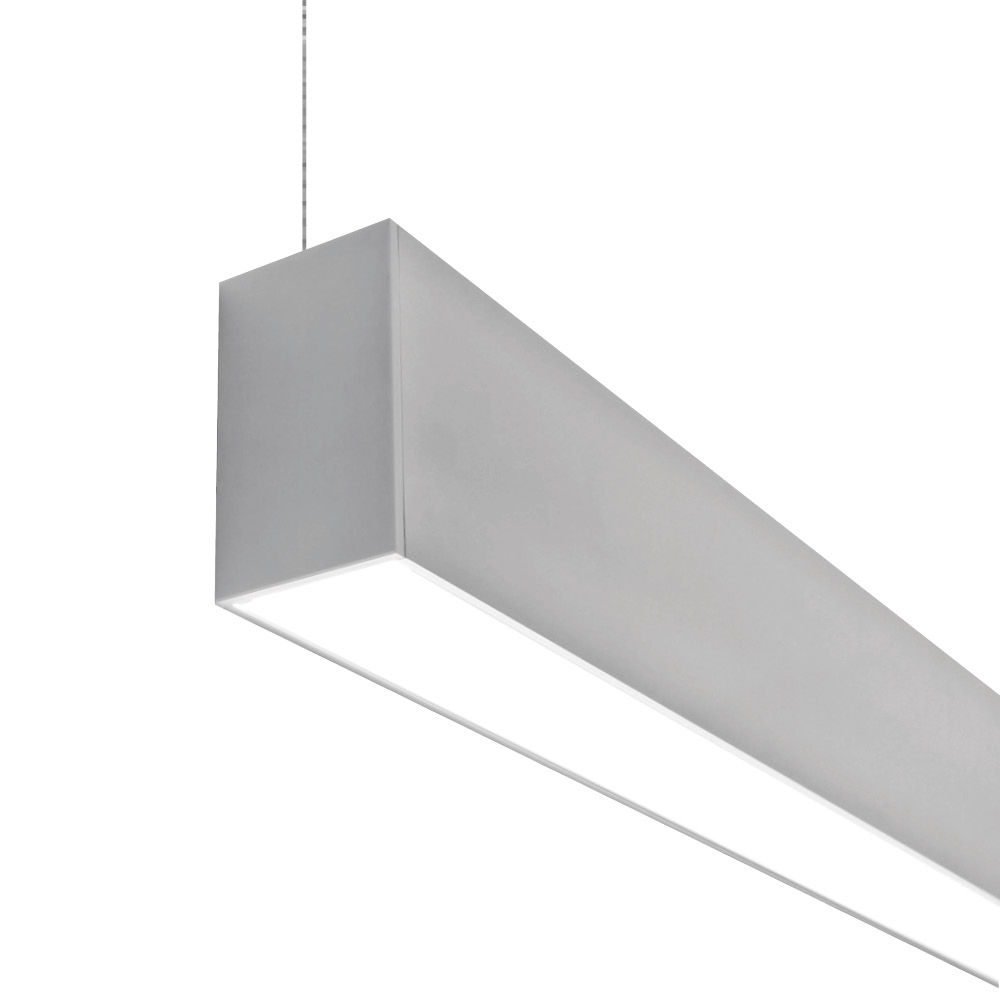

Dual Distribution Luminaires

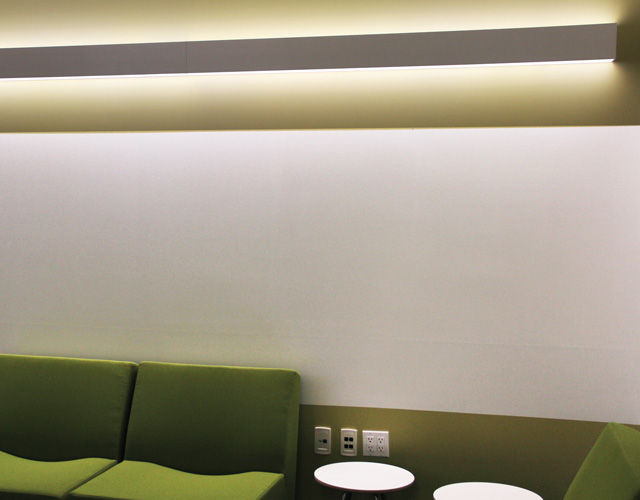

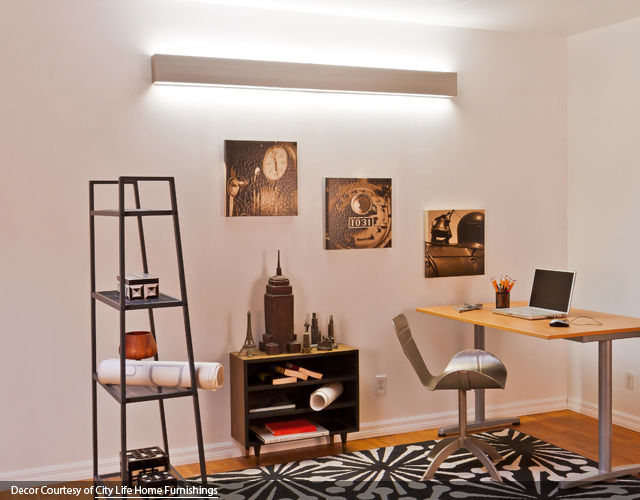

Direct/Indirect rectilinear fixture available with dual switching for precise illumination on the ceiling or work plane, or for wall-grazing effects.

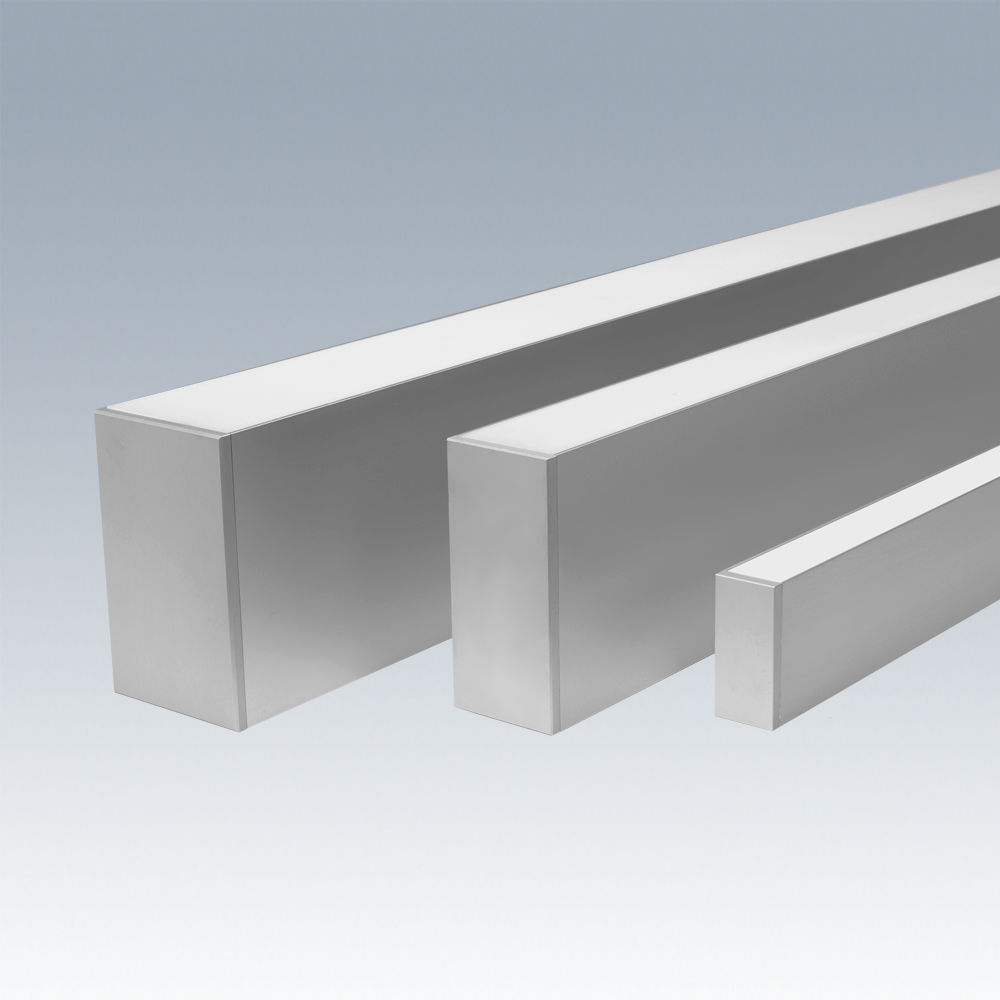

Available in 1.25", 2.25” and 3.25” apertures, Flush lens, FLS or Reveal lens, RLW (3/8" illuminated edge). Continuous run available.

Corridors, offices, conference spaces, commercial, healthcare, institutional, stairwells, retail.

Mounting Options
Pendant, suspended, surface mounted.

Light Source
Various LED options with integral driver/dimming. Up to 120 Lm/W
​(CLO) Custom Lumen Output - Programable Drivers to any Lumen Package

Performance Options (Performance Optic Page)
HE - High Efficiency Lens
BW- Batwing
AS-Asymmetric 15 degree
E-70 - Elliptical 70 Degree

Adjustable aircraft cable suspension mount, wall mount, asymmetric and symmetric reflectors, multiple lens and louver selections. Heavy gauge extruded anodized aluminum housing, 1/4" precision machined aluminum end caps, extruded acrylic lenses.

10-Day Shipping
Select standard offerings available for 10-day shipping. See 10-Day Specification.

Country of Origin: United States

Product Information

  • Product Features

    Aperture Size : 1-1/4" (1.25"),2-1/4" (2.25"),3-1/4" (3.25")

    Construction Type : Aluminum

    Environment : Indoor

    Light Source : LED

    Listings : Damp Location

    Lumen Output : Standard (SLO),High (HLO),Custom (CLO)

    Mounting : Cable Suspended,Rigid Stem,Wall Mount,Ceiling Mount

    Product Shape : Rectangle

    Product Type : Suspended Linear,Surface Linear,Direct/Indirect

    Voltage : 120V,277V,347V,Low Voltage
