Square Architectural


Incredibly versatile and efficient fixture with numerous options and variations. Direct, indirect, wall wash, rotational and stack lighting.

Available in 1.25”, 2.25” and 3.25” apertures, Flush lens, FLS or Reveal lens, RLW (3/8" illuminated edge). Continuous run available.

Office, retail, hospitality, residential, corridors, healthcare and stairwell installations.

Mounting Options

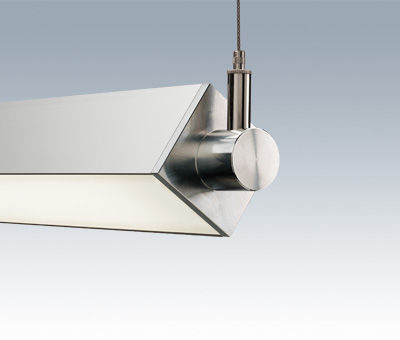

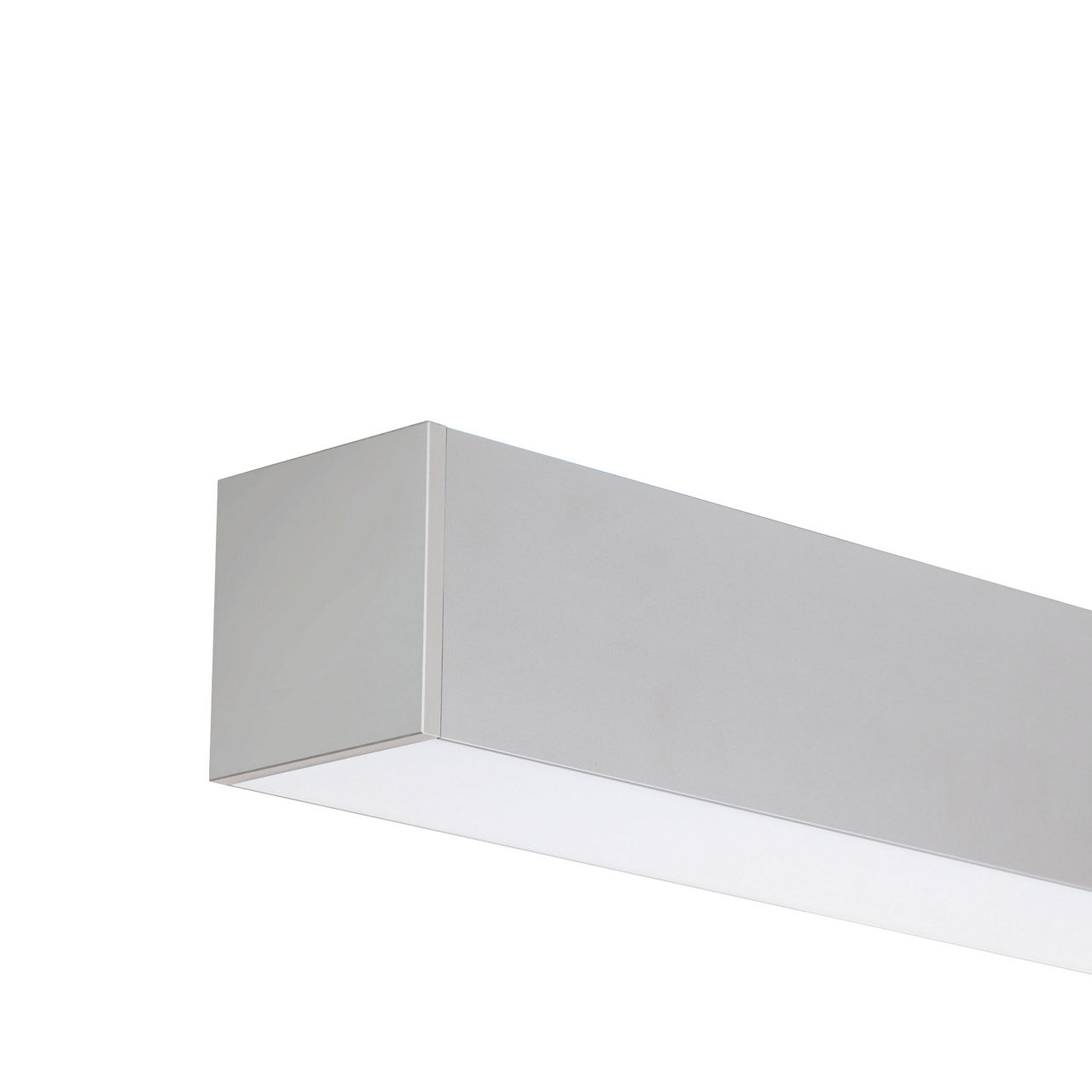

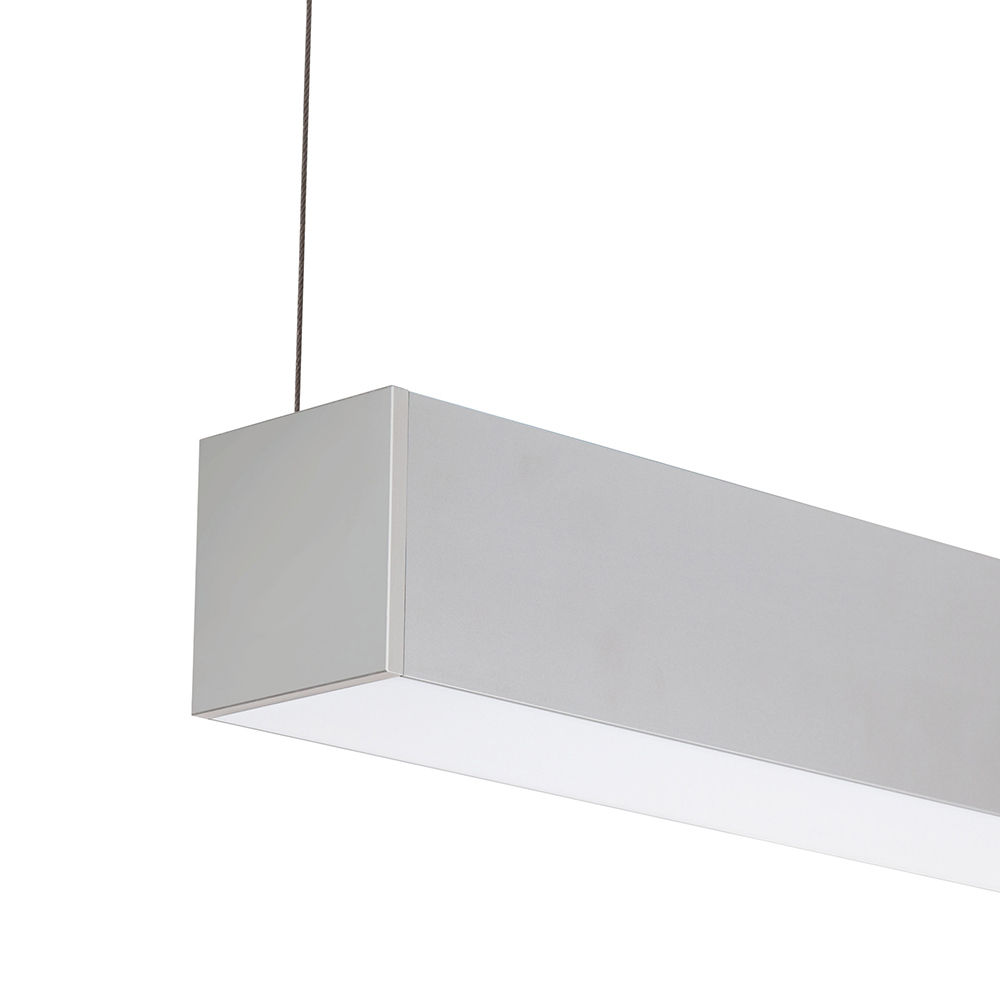

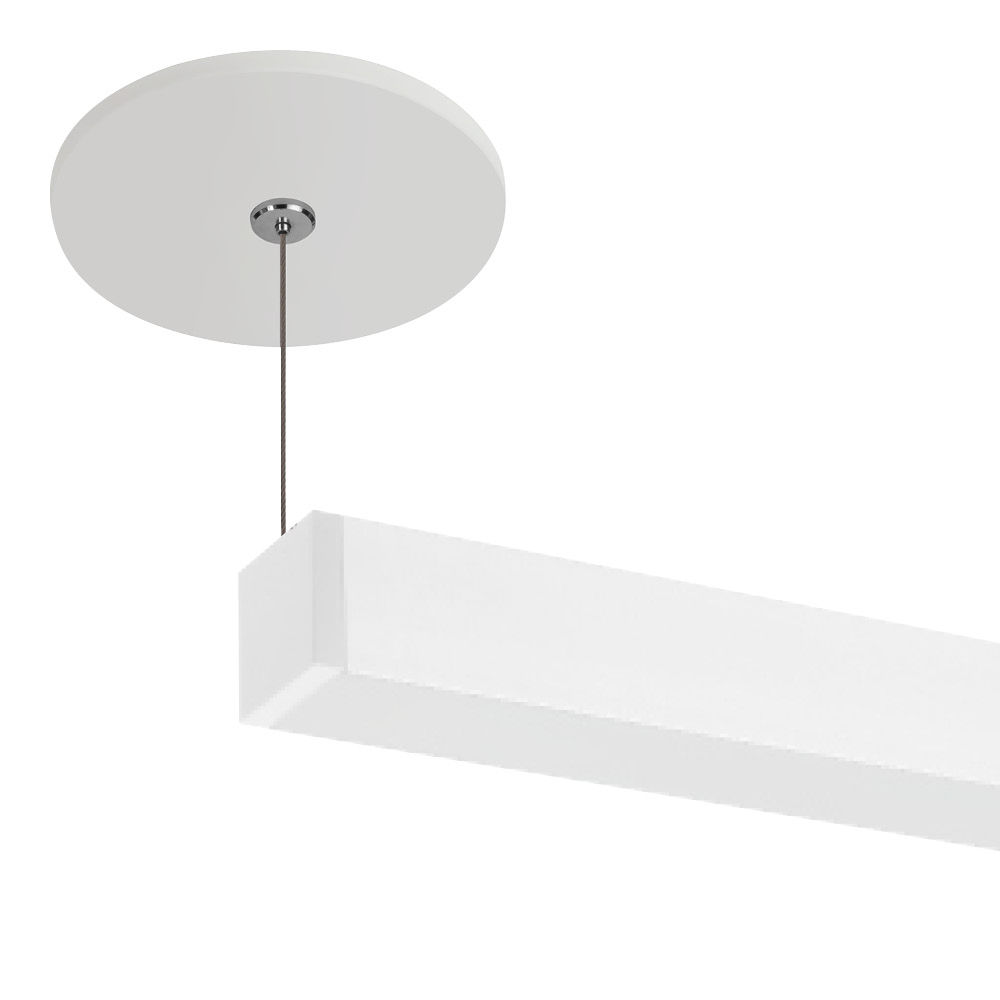

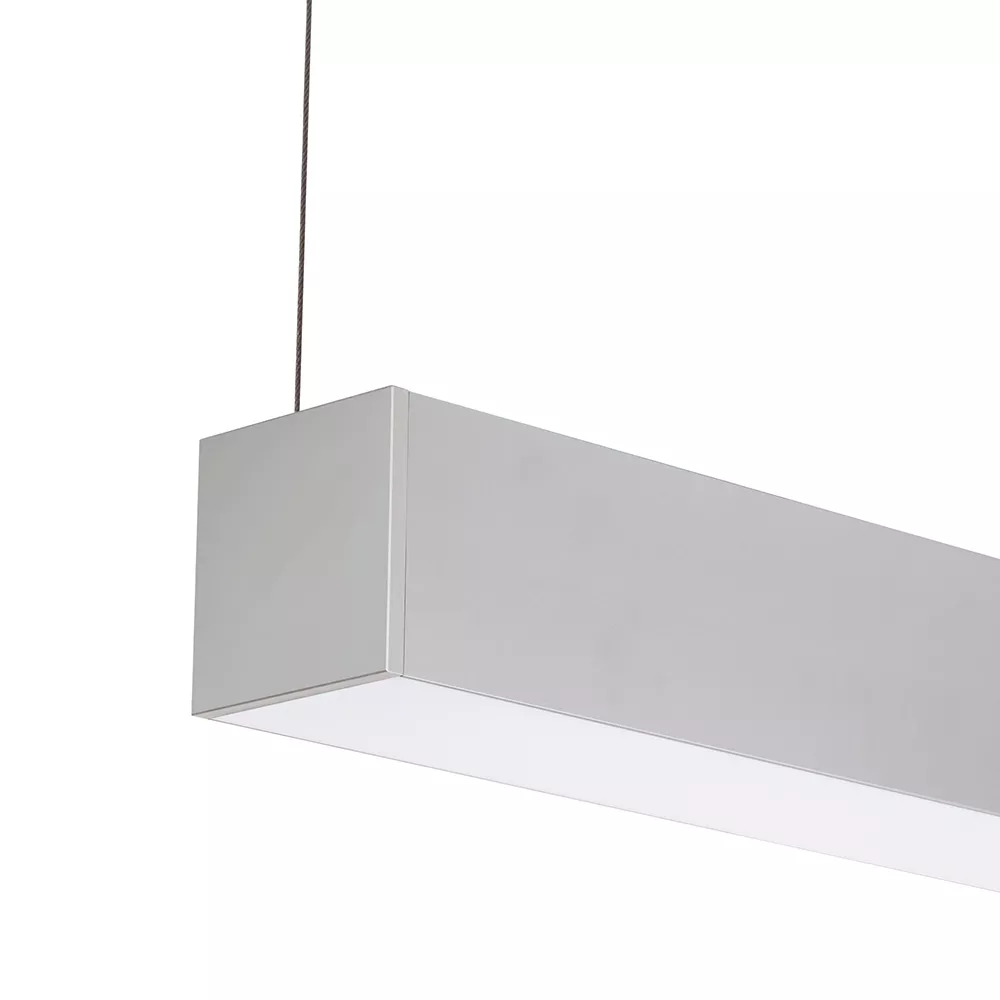

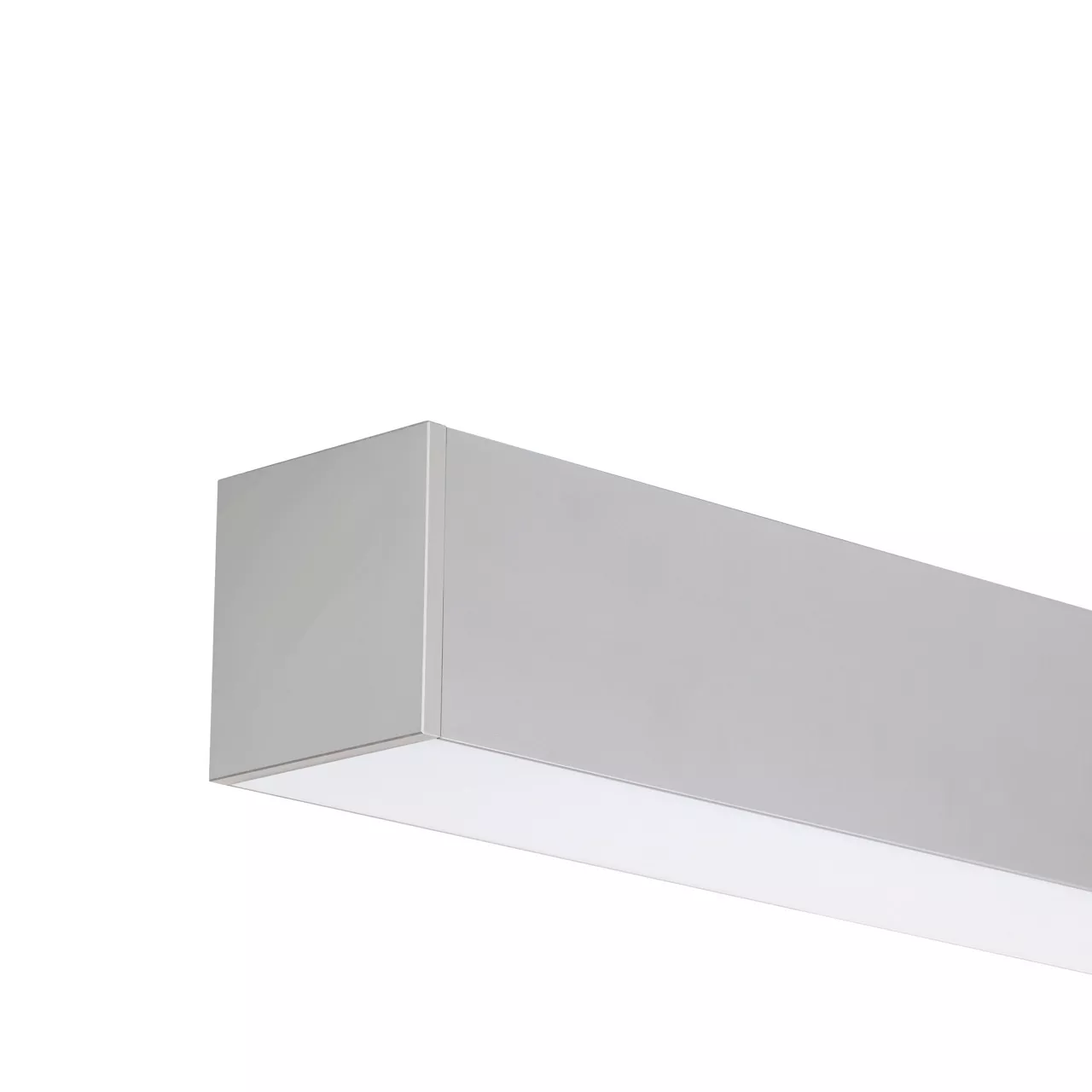

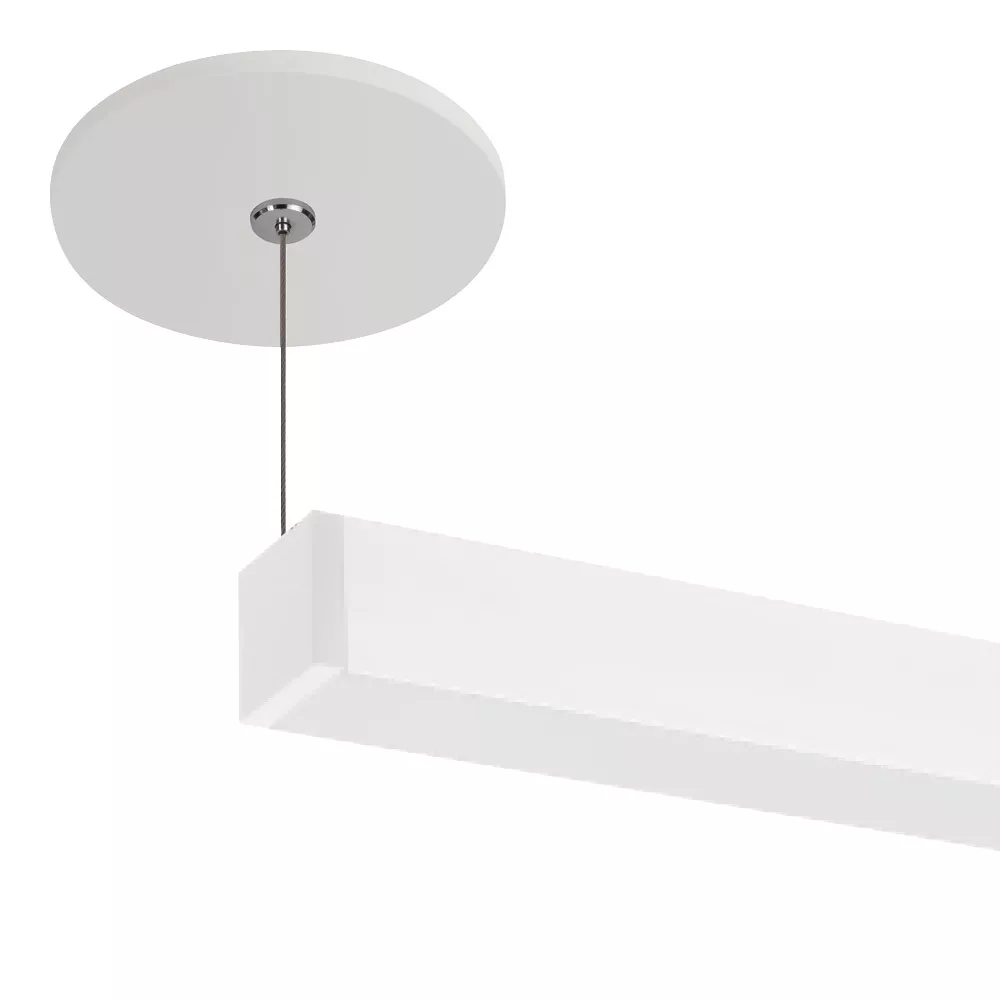

Surface Mount – SM, Suspended Pendant - CSS, Adjustable Suspended Pendant – CSS-R,  Powered Cable Suspension System – CSS-P, & Rotational Arm wall Mount - RAS

Light Source
Various LED options with integral driver/dimming. Up to 120 Lm/W
​(CLO) Custom Lumen Output - Programable Drivers to any Lumen Package

Performance Options (Performance Optic Page)
HE - High Efficiency Lens
BW- Batwing
AS-Asymmetric 15 degree
E-70 - Elliptical 70 Degree

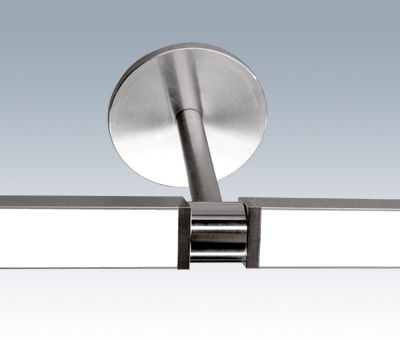

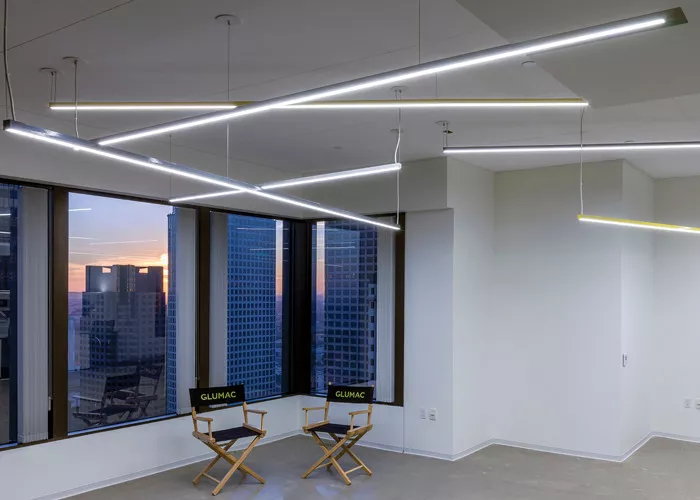

Multiple mounting options, finishes, lens and louvers. 361° rotation available on arm mount and cable suspended fixtures.

10-Day Shipping
Select standard offerings available for 10-day shipping. See 10-Day Specification.


Country of Origin: United States

Product Information

  • Product Features

    Aperture Size : 1-1/4" (1.25")|2-1/4" (2.25")|3-1/4" (3.25")

    Construction Type : Aluminum

    Environment : Indoor

    Light Source : LED

    Lumen Output : Standard (SLO)| High (HLO)| Custom (CLO)

    Mounting : Cable Suspended|Power Over Cable|Rigid Stem|Wall Mount|Ceiling Mount|Arm Mount

    Product Shape : Square

    Product Type : Direct|Suspended Linear|Surface Linear

    Voltage : 120V|277V|347V|Low Voltage
